Type 9104 ...
Film Resistors
Plug-in film resistors from 10 Ω to 10 MΩ in a transparent plastic housing, power rating 2 W.
Plug-in Components
Plug-in resistors, capacitors, semiconductors, relays, lamps and related components for hps training systems.
Type 9105 ...
Film Resistors
Plug-in film resistors from 0.2 Ω to 8.2 Ω in a transparent plastic housing, power rating 2 W.
Type 9107 ...
Precision Resistors
Plug-in precision resistors (tolerance ±1 %) from 1 kΩ to 2 MΩ in a transparent plastic housing.
Type 9310 ...
Power Resistors (10 W)
Plug-in power resistors (10 W) from 1 Ω to 43 Ω in a black sintered metal housing.
Type 9116 ...
NTC Resistors
Plug-in NTC resistors (thermistors) with 470 Ω, 4.7 kΩ and 40 kΩ nominal resistance in a transparent plastic housing.
Type 9116.2
PTC Resistor (P 330 - C 11)
Plug-in PTC resistor (posistor) P 330 - C 11, nominal resistance R60 = 80 Ω, in a transparent plastic housing.
Type 9114.10
VDR Resistor
Plug-in VDR resistor (varistor), Urms = 14 V / UDC = 18 V, in a transparent plastic housing.
Type 9116.3
LDR Resistor (FW 200)
Plug-in LDR resistor (photoresistor) FW 200 in a transparent plastic housing, light entry on the left side of the housi…
Type 9108 ...
Potentiometers
Plug-in potentiometers from 100 Ω to 1 MΩ with rotary knob and scale, power rating 0.5 W.
Type 9109 ...
Power Potentiometers (4 W / 20 W)
Plug-in power potentiometers with 4 W (plastic housing) and 20 W (light-metal housing), rotary knob with scale.
Type 9110 ...
Capacitors
Plug-in capacitors from 10 pF to 10 µF in a transparent plastic housing, operating voltage at least 100 V.

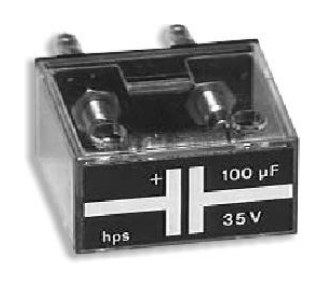

Type 9111 ...

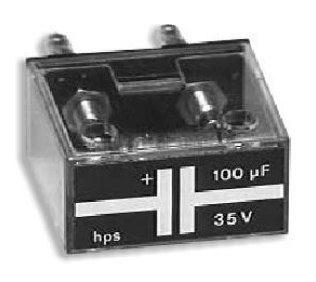

Electrolytic Capacitors
Plug-in electrolytic capacitors from 2.2 µF to 2200 µF in a transparent plastic housing, also with reverse-polarity pro…
Type 9112 ...
Capacitors (large housing)
Capacitors and electrolytic capacitors of the types 9112 ... in the larger plug-in housing (plug spacing 38 mm).
Type 9114 ... Dioden
Diodes
Plug-in silicon and germanium diodes (200 mA to 1 A) in a transparent plastic housing.
Type 9114.5
Varactor Diode
Plug-in varactor diode (variable-capacitance diode), CD = 5 pF ... 28 pF, in a transparent plastic housing.
Type 9114 ... Zener-Dioden
Zener Diodes
Plug-in Zener diodes from 3.3 V to 24 V in a transparent plastic housing.
Type 9115 ...
Zener Diodes (large housing)
Plug-in Zener diodes from 4.7 V to 24 V in the larger transparent plastic housing (plug spacing 38 mm).
Type 9114.4
Diac
Plug-in diac with symmetrical breakover voltage UBR = 32 V in a transparent plastic housing.
Type 9117.1
Thyristor
Plug-in thyristor 400 V / 3 A in a transparent plastic housing with three gold-plated lamella plugs.
Type 9117.2
Triac
Plug-in triac 400 V / 4 A in a transparent plastic housing with three gold-plated lamella plugs.
Type 9118 ... Transistoren
Transistors
Plug-in PNP and NPN transistors with base connection on the left or right in a transparent plastic housing.
Type 9117 ...
Transistors in light-metal housing
Plug-in NPN power transistors 60 V / 15 A in a fluidised-bed sintered light-metal housing, base connection on the left …
Type 9118 ... Sperrschicht-Feldeffekt-Transistoren
Junction Field-Effect Transistors
Plug-in junction field-effect transistors (N-channel and P-channel) in a transparent plastic housing.
Type 9118.11
MOS Field-Effect Transistor
Plug-in MOS field-effect transistor (-40 V / -50 mA) with gate connection on the left in a transparent plastic housing.
Type 9118.9
Unijunction Transistor
Plug-in unijunction transistor (UBB = 35 V, IE = 50 mA) in a transparent plastic housing.
Type 9118.21
Power MOSFET
Plug-in power MOSFET, under development (preliminary version in the catalogue).
Type 9158
Transistor Socket
Plug-in transistor socket with four-pole socket for commercially available transistors in a transparent plastic housing.

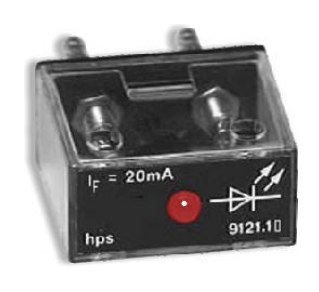

Type 9121 ... Leuchtdioden
LEDs
Plug-in LEDs in green, yellow and red, also with series resistor for 5 V and 15 V and as a flashing LED.
Type 9122.1
Light Source
Plug-in light source (12 V, 1 W) with light exit on the right side of the housing, e.g. for the LDR resistor type 9116.…
Type 9121 ... Lampen

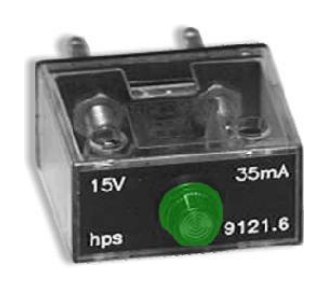

Lamps
Plug-in lamps in green, red and blue for 15 V and 24 V in a transparent plastic housing.
Type 9121.8
Lamp Holder (E 10)
Plug-in E 10 lamp holder in a transparent plastic housing, suitable for the bulb type 9121.8-1.
Type 1040.1
Solar Module
Plug-in solar module (short-circuit current 290 mA, open-circuit voltage 570 mV) in a transparent plastic housing.
Type 9117.26
Transistor Coupler
Plug-in transistor coupler (optocoupler with GaAs LED and phototransistor) with four gold-plated lamella plugs.
Type 9117.40
Thyristor Coupler
Plug-in thyristor coupler (600 V / 3 A) for switching loads of 24 V ... 230 V AC by TTL pulses.
Type 9117.41
Triac Coupler
Plug-in triac coupler (600 V / 3 A) for switching loads of 24 V ... 230 V AC by TTL pulses.
Type 9240
Operational Amplifier
Plug-in operational amplifier (type 741) with five gold-plated lamella plugs for supply voltage and wiring.
Type 9240.1

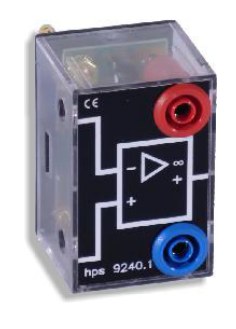

Operational Amplifier, Si (with safety sockets)
Plug-in operational amplifier (type 741) with supply voltage via two 4 mm safety sockets on the front.
Type 9235 ...
Voltage Regulators
Plug-in voltage regulators for 5 V, 12 V and 15 V DC (Pmax = 4 W) in a transparent plastic housing.
Type 9119 ...
Coils (with air gap)
Plug-in coils with air gap from 10 µH to 200 mH, some with adjustable core, in a transparent plastic housing.
Type 9120.23
Experimenting Transformer with Coils
Experimenting transformer set: two-part cut strip core and five plug-in coils (N = 100, 300, 900).
Type 9131.2
Relay (with driver)
Plug-in relay with three changeover contacts and built-in driver stage for TTL control, operating voltage 5 V DC.

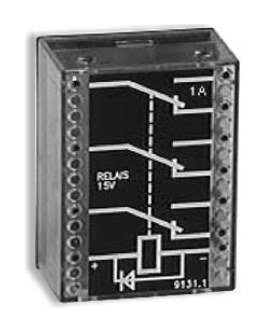

Type 9131 ...
Relays (without driver)
Plug-in relays with three changeover contacts for nominal voltages of 5 V, 15 V and 24 V, coil connection via 4 mm plug…

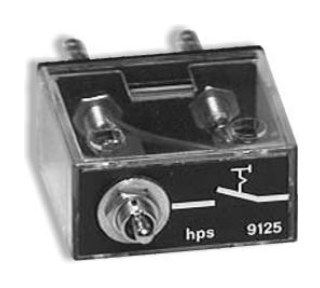

Type 9125
Toggle Switch (on/off, single-pole)
Plug-in single-pole on/off toggle switch (5 A at 120 V AC / 28 V DC) in a transparent plastic housing.
Type 9125.1
Push-button (NC contact)
Plug-in push-button with NC contact (1 A) in a transparent plastic housing.
Type 9125.2
Push-button (NO contact)
Plug-in push-button with NO contact (1 A) in a transparent plastic housing.
Type 9126
Change-over Switch (single-pole)
Plug-in single-pole change-over switch (5 A at 120 V AC / 28 V DC) with three gold-plated lamella plugs.
Type 9126.1
Push-button (change-over)
Plug-in change-over push-button (1 A) with three gold-plated lamella plugs.
Type 9129

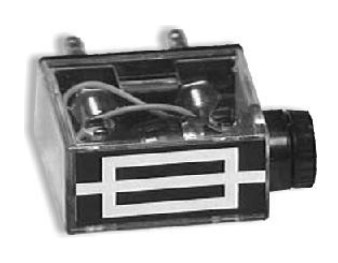

Fuse Holder
Plug-in fuse holder for fine-wire fuses 5 mm Ø x 20 mm in a transparent plastic housing.
Type 9129 ...
Fine-wire Fuses (5 mm Ø x 20 mm)
Fine-wire fuses 5 mm Ø x 20 mm from 1 A to 16 A (very fast-acting and time-lag) for the fuse holder type 9129.
Type 9128
Battery Holder for AA (Mignon) Battery
Plug-in plastic battery holder with inserted AA (Mignon) battery, plug spacing 76 mm.
Type 9128.1

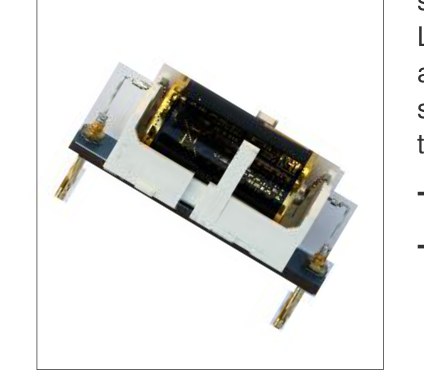

Battery Holder for D (Mono) Battery
Plug-in plastic battery holder with inserted D (Mono) battery, plug spacing 76 mm.

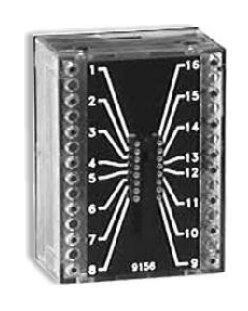

Type 9156
IC Socket (dual-in-line)
Plug-in IC socket for dual-in-line ICs with up to 16 pins, connections on 2 mm sockets, with extraction wedge.
Type 9156.1
IC Socket (TO)
Plug-in 10-pin IC socket for transistors and integrated circuits in TO 5 and TO 8 packages.
Type 9156.3
IC Socket (dual-in-line, 28-pin)
Plug-in IC socket for narrow and wide dual-in-line ICs with up to 28 pins, with quick-clamping device.

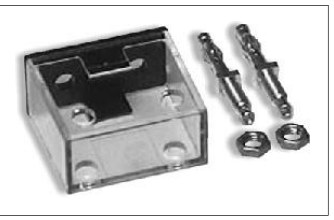

Type 9150 ...
Empty Housing (38 x 19 x 35 mm)
Plug-in empty housing 38 x 19 x 35 mm for self-assembly of resistors, capacitors, diodes etc., with or without plugs.
Type 9151.1
Empty Housing (38 x 57 x 35 mm, 3 plugs)
Plug-in empty housing 38 x 57 x 35 mm with 3 plugs, 6 nuts and 3 solder tags, e.g. for transistors.
Type 9152.5
Empty Housing (38 x 57 x 35 mm, 2 plugs)
Plug-in empty housing 38 x 57 x 35 mm with 2 plugs and 2 nuts, e.g. for capacitors.
Type 9152.6
Empty Housing (38 x 57 x 35 mm, 2 plugs, 2 solder tags)
Plug-in empty housing 38 x 57 x 35 mm with 2 plugs, 4 nuts and 2 solder tags for components or assemblies.
Type 9152.4
Empty Housing (38 x 57 x 35 mm, for potentiometers)
Plug-in empty housing 38 x 57 x 35 mm with three plugs, rotary knob with 6 mm collet and lid opening (9 mm) for fitting…
Type 9152.7

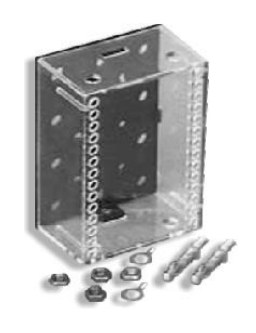

Empty Housing (75 x 56 x 35 mm, series 94xx)
Plug-in empty housing 75 x 56 x 35 mm (series 94xx) with snap fastener and clamping device for the universal PCBs type …
Type 9153
Empty Housing (light metal, 54 x 54 x 36 mm)
Plug-in empty housing made of fluidised-bed sintered light metal (black) with three plugs, e.g. for transistors, thyris…
Type 9153.1
Empty Housing (metal, 35 x 19 x 51 mm)
Plug-in empty housing made of black sintered metal with two plugs for two-pole components.
Type 9160

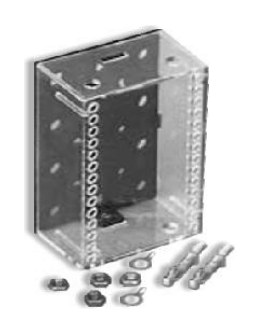

Lamella Plug (4 mm, 38 mm long)
Gold-plated lamella plug for 4 mm sockets with nut, serrated washer and solder tag, overall length 38 mm.
Type 9160.1
Lamella Plug (4 mm, 30 mm long, without solder cup)
Gold-plated lamella plug for 4 mm sockets with 2 nuts and solder tag, overall length 30 mm, without solder cup.

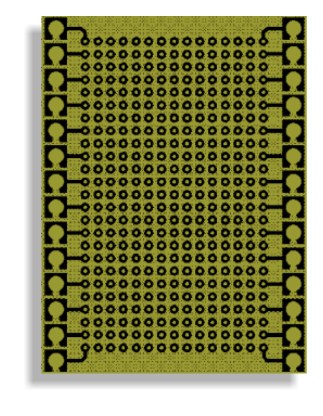

Type 9167 ...

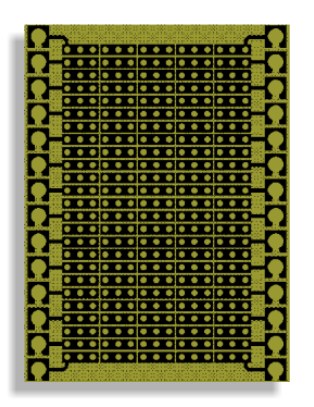

Universal PCBs (dot grid / strip grid)
Universal PCBs 70 x 52 mm with dot grid (type 9167) or strip grid (type 9167.1) for your own plug-in modules in the emp…
Type 9168
Collar Sleeve
Collar sleeve made of tinned brass (2.0 / 2.5 mm, 27 mm long) for soldering into the universal PCBs type 9167 and 9167.…
Type 9161 ...
Labels (34 x 15 mm)
Self-adhesive labels 34 x 15 mm with circuit symbol (resistor, capacitor, diode, Zener diode) or blank for the empty ho…
Type 9162 ...
Labels (34 x 52 mm / 37.5 x 70 mm)
Self-adhesive labels with circuit symbol (potentiometer, capacitor, transistor) or blank for the empty housings types 9…
