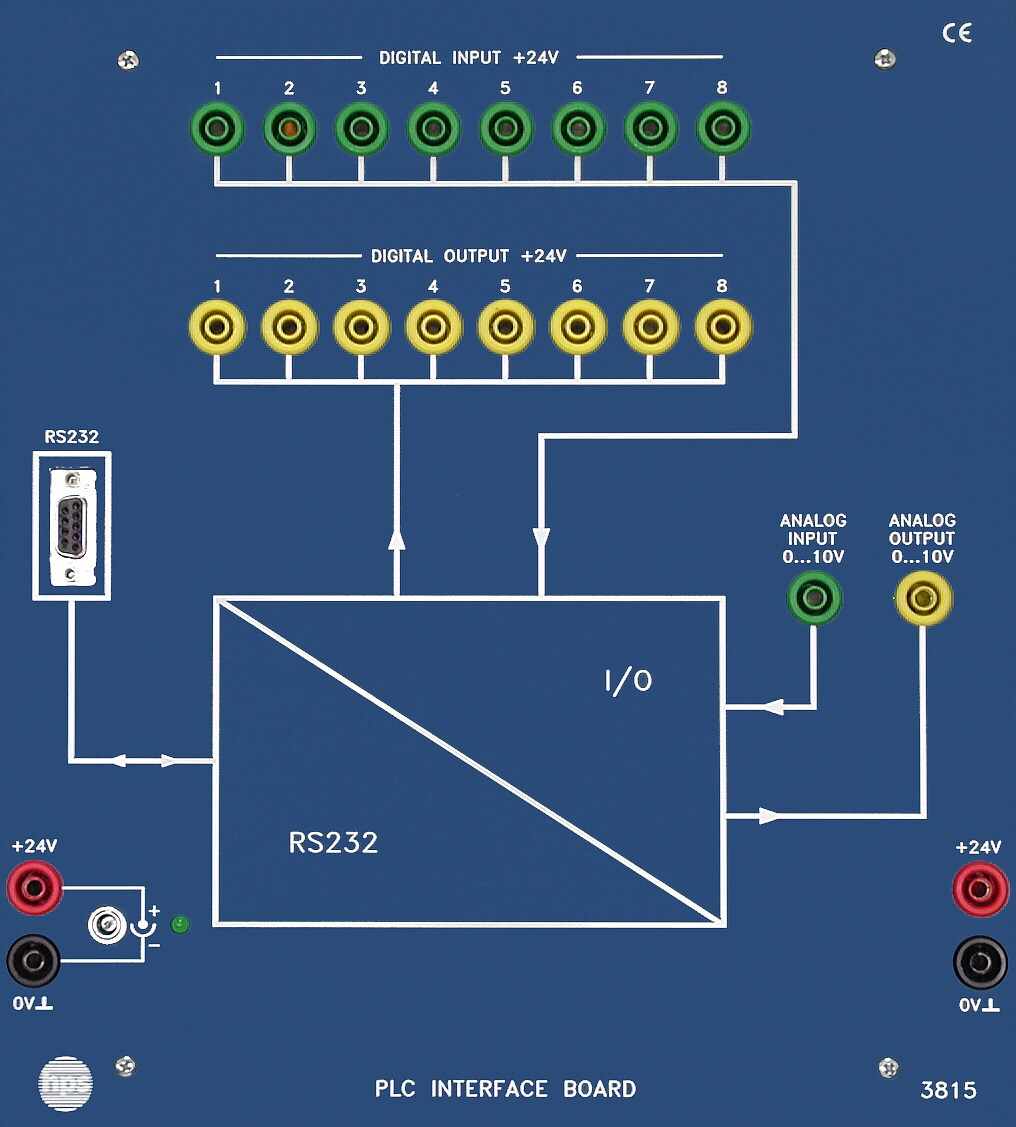

INTERFACE WITH SIMULATION SOFTWARE Type 3815

Type 3815

INTERFACE WITH SIMULATION SOFTWARE Type 3815

The PLC INTERFACE BOARD Type 3815 links PLCs and compact controllers to a PC and enables the simulation of didactically prepared automation tasks. It is suited for checking control programs quickly, from simple motor control up to sorting systems.

  • Simulation of 9 different applications with the PC, from simple motor control up to the sorting system
  • Animated processes for direct verification of PLC programs
  • Hardware link for any PLCs and miniature controls with 24 V
  • Task descriptions integrated directly into the simulation program
  • All inputs and outputs connected via 4 mm safety jacks
  • RS-232 interface for PC connection
Datasheet (PDF) Send Inquiry

Simulation and Training

The hps training system "PLC Applications" consists of simulation software and the PLC INTERFACE BOARD for linking a PLC or compact controller to a PC.

The software simulates different automation examples such as traffic lights, motor control, sorting systems and level control. In training, a PLC program is created for each application and checked immediately on the simulation model.

System Integration

The PLC INTERFACE BOARD adapts any 24 V PLC to the PC.

hps SystemTechnik recommends the UNIVERSAL COMPONENT BOARD Type 2150 as compact controller and the SPS BOARD S7-300 Type 2130 as programmable controller.

  • Included accessory: Plant simulator software Type PC 3815.2
  • Required accessories: SPS BOARD S7-300 Type 2130 or UNIVERSAL COMPONENT BOARD Type 2150
  • Recommended accessories: 24 V / 1.0 A power supply Type 3816, RS-232 connecting cable Type 9102.50 and 4 mm safety leads Type 3815.1-1
  • Can be combined with UNIVERSAL COMPONENT BOARD Type 2150 and SPS BOARD S7-300 Type 2130
Operating voltage
24 V / 500 mA
Inputs
8 digital inputs, 1 analog input
Outputs
8 digital outputs, 1 analog output
Analog signal level
0 ... 10 V
Digital signal level
24 V DC
Interface
RS 232
Dimensions
266 x 297 x 110 mm (W x H x D)
Weight
approx. 2.4 kg
Compatible PC
IBM-compatible PC from 500 MHz, CD-ROM drive, free serial interface, sound card recommended
Note
No USB adapter can be used
