FIRE ALARM BOARD Type 2108

Type 2108

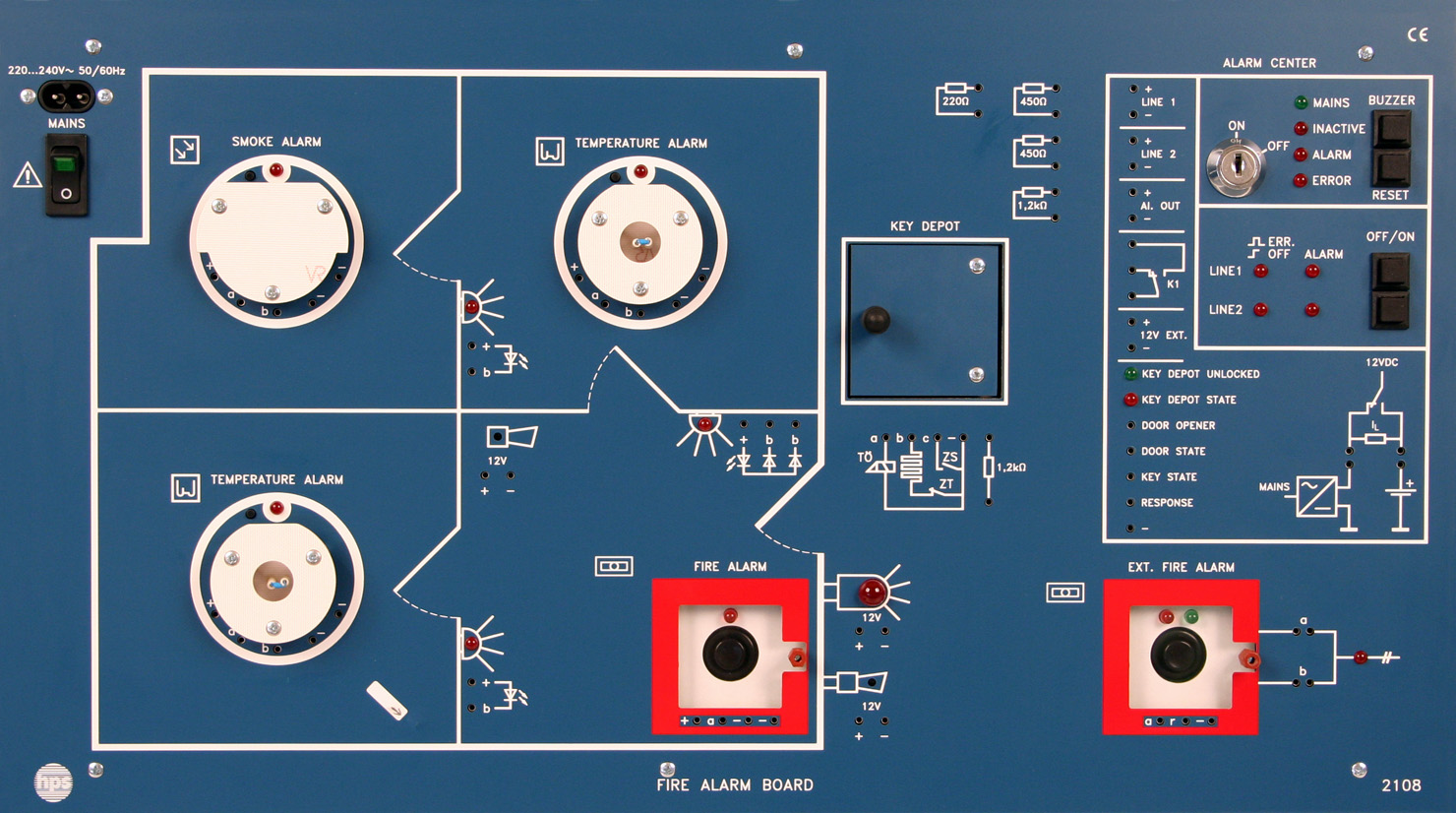

FIRE ALARM BOARD Type 2108

The FIRE ALARM BOARD Type 2108 is a complete fire alarm system on one board. Freely wireable components, an integrated fire alarm centre and signalling devices for optical and acoustic alarm output make the board suitable for teaching and laboratory experiments.

  • Complete fire alarm system on one board
  • All single components freely wireable
  • Integrated fire alarm centre
  • Acoustic and optical alarm devices integrated
  • Integrated key depot
  • Thermodifferential detectors, smoke detector and manual trigger
Datasheet (PDF) Experiment manual / contents (PDF)

Fire alarm system

Type 2108 represents a complete fire alarm system on one board. The components can be wired freely, making it possible to build up the system step by step until it is fully operational.

The integrated fire alarm centre, optical indicators and acoustic signalling devices make the setup suitable for realistic exercises.

Sensors and signalling

The system combines thermodifferential detectors, a smoke detector, a manual trigger, a main detector, inside and outside sirens, and optical alarm indicators.

A key depot and four terminating resistors are also part of the system.

  • Suitable for practical fire alarm experiments
Mains connection
230 V AC / 115 V AC (110 V AC), 50 ... 60 Hz; approx. 10 VA
Thermodifferential detector
12 V DC
Optical smoke detector
12 V
Manual trigger
12 V
Main detector
12 V
Alarm centre output
12 V DC / 0.2 A
Connection technology
2 mm sockets
Board dimensions
532 x 297 x 120 mm (W x H x D)
Board weight
approx. 3.0 kg
Box version dimensions
580 x 450 x 155 mm (W x H x D)
Total weight with box
approx. 6.2 kg
Recommended accessories
V 0113, RMS multimeter

Taken from the tables of contents of the hps experiment manuals (titles, numbers and pages). Titles are translated into English; page references refer to the German manuals. All manuals and experiments

V 0113 Experiments with a fire alarm system Manual · 54 pages 64 experiments

Main device of this manual – applies to all experiments View table of contents

  1. 2.1 Definitions p. 8
  2. 2.2 Requirements for a fire alarm system p. 10
  3. 2.3 Control of fire protection systems p. 10
  4. 2.4.1 Alarm organization p. 11
  5. 2.4.2 Scope of monitoring p. 11
  6. 2.4.3 Detection zones p. 11
  7. 2.4.4 Selection of automatic fire detectors p. 11
  8. 2.5.1 Fire alarm control panel (BMZ) p. 12
  9. 2.5.2 Detection zones p. 13
  10. 2.5.3 Detector groups p. 13
  11. 2.5.4 Alert areas p. 13
  12. 2.5.5 Transmission routes p. 13
  13. 2.5.6 Positioning manual call points p. 13
  14. 2.5.7 Arrangement of automatic manual call points p. 13
  15. 2.5.8 Energy supply p. 14
  16. 2.6.1 Remote alarm p. 14
  17. 2.6.2 External alarm p. 14
  18. 2.6.3 Internal alarm p. 14
  19. 2.7.1 Automatic fire detectors p. 14
  20. 2.7.2 Avoiding false alarms p. 15
  21. 2.7.3 Electrical lines p. 15
  22. 2.7.4 Energy supply p. 15
  23. 2.7.5 Networked fire alarm panels p. 15
  24. 2.7.6 Transmission facility (ÜE) p. 16
  25. 2.7.7 Alarm signalling device p. 16
  26. 2.7.8 Fire extinguishing systems p. 16
  27. 2.7.9 Smoke and heat extraction systems p. 18
  28. 2.7.10 Hold-open systems for fire protection barriers p. 18
  29. 2.7.11 Two-detector and two-group dependency p. 18
  30. 2.8 System documentation p. 18
  31. 2.9.1 Detector p. 18
  32. 2.9.2 Connections and cable laying p. 18
  33. 2.9.3 Energy supply p. 19
  34. 2.9.4 Fire alarm control panel (BMZ) p. 19
  35. 2.9.5 Transmission facility p. 19
  36. 2.9.6 Fire department control panel p. 19
  37. 3.1.1 Ionization smoke detector p. 20
  38. 3.1.2 Two-chamber ionization smoke detector p. 21
  39. 3.1.3 Optical smoke detectors p. 21
  40. 3.1.4 Beam smoke detector p. 22
  41. 3.1.5 Wireless smoke detector p. 22
  42. 3.2 Fire gas detector p. 22
  43. 3.3.1 Fixed-temperature heat detector p. 22
  44. 3.3.2 Rate-of-rise heat detector p. 24
  45. 3.3.3 Combined rate-of-rise and fixed-temperature heat detector p. 24
  46. 3.4 Flame detector p. 24
  47. 3.5 Non-automatic fire detectors p. 24
  48. 3.6 Fire department key depot p. 25
  49. 3.7 Fire department control panel p. 25
  50. 3.8 Fire alarm control panel p. 26
  51. 3.9 Basic information about connecting the detection lines to the detectors p. 27
  52. 4.1 Fire alarm transmission unit p. 28
  53. 4.2 Rate-of-rise heat detector p. 30
  54. 4.3 Optical smoke detector p. 32
  55. 4.4 Manual call point p. 34
  56. 4.5 Fire department key depot p. 36
  57. 5.1 Detector circuits p. 39
  58. 5.2 Alarm output p. 41
  59. 5.3 Key safe control via the fire alarm control panel p. 43
  60. 5.4 Monitored faults p. 45
  61. 5.5.1 Automatic detectors p. 47
  62. 5.5.2 Manual call point p. 49
  63. 5.5.3 Manual call point, fire alarm transmission unit and key safe p. 51
  64. 5.5.4 Complete fire alarm system with the FIRE ALARM BOARD p. 53
V 0113 Experiments with a fire alarm system Solutions · 8 pages 16 experiments

Main device of this manual – applies to all experiments View table of contents

  1. 4.1 Fire alarm transmission unit p. 3
  2. 4.2 Rate-of-rise heat detector p. 3
  3. 4.3 Optical smoke detector p. 3
  4. 4.4 Manual call point p. 4
  5. 4.5 Fire department key depot p. 4
  6. 5.1 Detector circuits p. 5
  7. 5.2 Alarm output p. 5
  8. 5.3 Key safe control via the fire alarm control panel p. 5
  9. 5.4 Monitored faults p. 6
  10. 5.5.1 Automatic detectors p. 7
  11. 5.5.2 Manual call point p. 7
  12. 5.5.3 Manual call point, fire alarm transmission unit and key safe p. 7
  13. 5.5.4 Complete fire alarm system with the FIRE ALARM BOARD p. 7
  14. 4.1 Fire alarm transmission unit: status, green LED, red LEDs, U/V in standby p. 5
  15. 4.2 Rate-of-rise heat detector
  16. 4.3 Optical smoke detector
