Type 8112

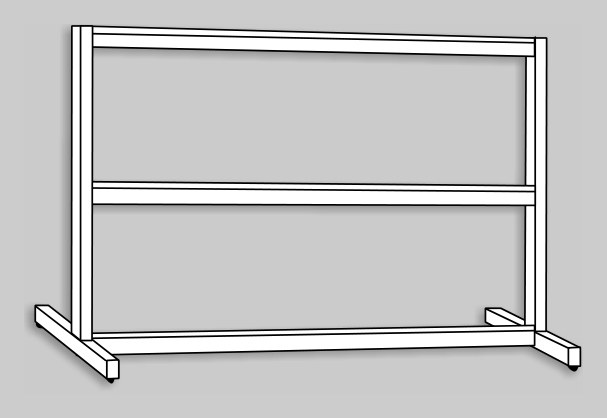

Table Frame, 2-tier Type 8112
Type 8112 is a two-tier frame for hps demonstration plates and boards in the 95 mm to 532 mm range. It provides a non-slip table setup for compact experiment arrangements and fits the hps BOARD-Line hardware concept.
- For demonstration plates and boards from 95 x 297 mm to 532 x 297 mm
- Two-tier frame for desk use
- Powder-coated steel square tubes with anodized aluminium H-profile rails
- Non-slip standing thanks to four rubber feet
- Compact design for fast experiment changes
Application
Type 8112 holds hps demonstration plates and boards in two rows. It is designed for training desks and makes it easy to switch between different experiment setups.
Construction
The side frames are made of powder-coated silver steel square tubes. Three cross connections made of anodized aluminium H-profile rails provide stability and a clean mounting surface for the boards.
- Compatible board sizes
- 95 x 297 mm, 133 x 297 mm, 266 x 297 mm, 532 x 297 mm
- Dimensions
- 850 x 695 x 310 mm (W x H x D)
- Length of aluminium H-profile rails
- 810 mm
- Weight
- 4.5 kg
