ANALOG BOARD Type 3220

Type 3220

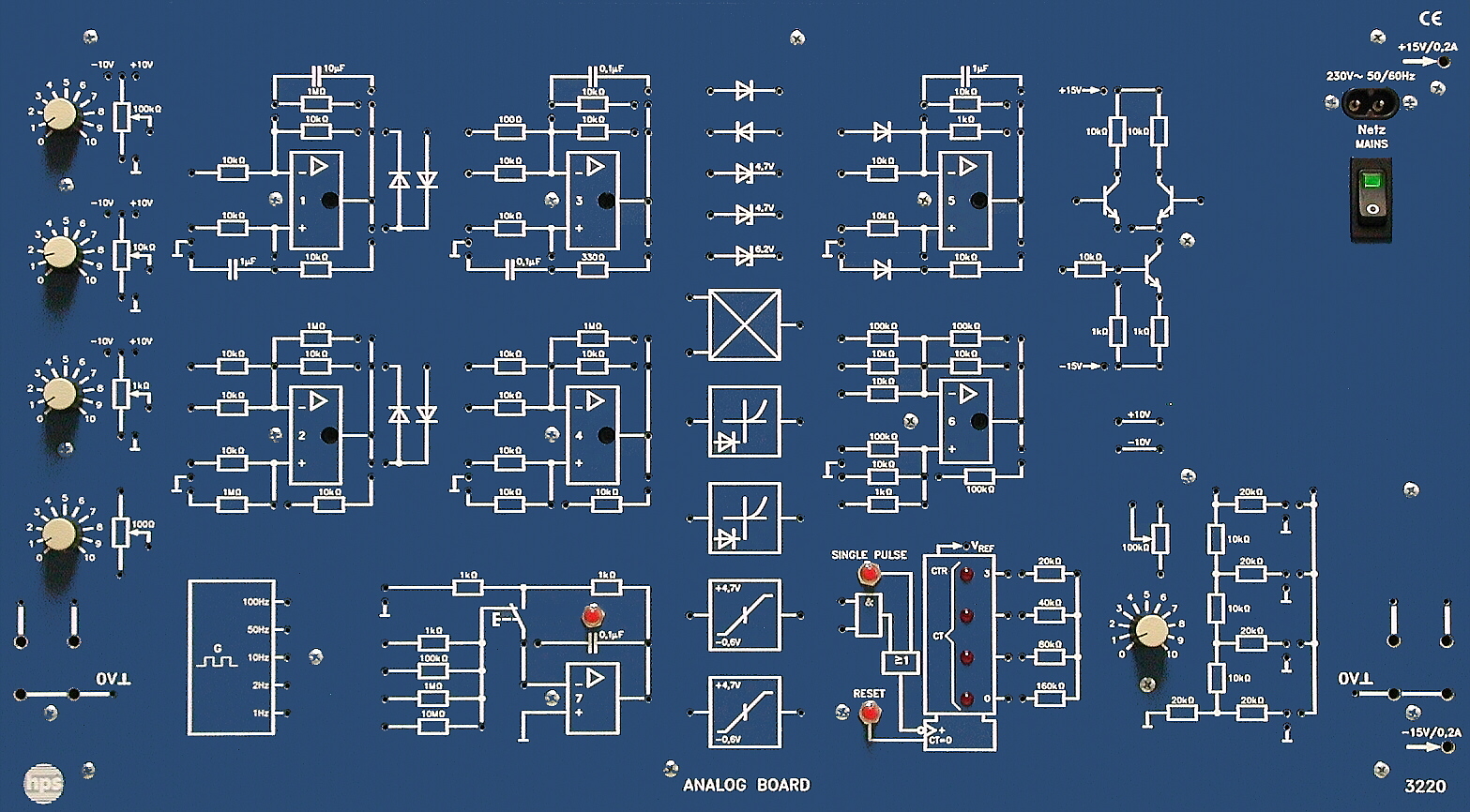

ANALOG BOARD Type 3220

The ANALOG BOARD Type 3220 is a compact teaching and training unit for analog technology. It combines a built-in power supply, solder-free assembly and clear adapter fields so that basic and advanced analog experiments can be assembled quickly and safely.

  • Universal teaching and training unit for analog technology
  • With built-in power supply unit
  • Solder-free assembly without additional equipment
  • Short setup times for laboratory and classroom use
  • Device protection against incorrect wiring
  • Direct connection of measurement and add-on devices via adapter fields
Datasheet (PDF) Experiment manual / contents (PDF)

Analog Technology on a Compact Platform

The ANALOG BOARD is designed for the presentation, teaching and practical deepening of analog technology topics. The required inputs and outputs of the operators and networks are brought out to 2 mm sockets.

The built-in adapter fields allow direct connection of measurement and accessory devices. This makes the board suitable for basic circuits, computing circuits, control engineering and hybrid technology.

Experiment Operation and Manual

The board can be used on a table, mounted in a frame stand or screwed into a box. The box provides safe transport and storage; all experiments can also be carried out directly in the box.

The product is accompanied by the experiment manual 'Introduction to Analog Technology' Type V 0047. It covers everything from operational amplifier basics to A/D and D/A conversion.

  • Usable as a table-top unit, in a frame stand or in the box version
  • Includes the experiment manual for analog technology
Mains supply
230 V AC / 115 V AC (110 V AC), 50 ... 60 Hz, approx. 40 VA
Voltage outputs for external devices
+/-15 V; 0.2 A
Adapter fields
2 mm to 4 mm
Operational amplifiers
6
Integrator
1, fully wired
Square networks
2, freely configurable
Multiplier
1
Transistors
3 x BC 140 ZPD 4.7 or 6.2
Square-wave generator
100 Hz, 50 Hz, 10 Hz, 2 Hz, 1 Hz
Dual counter
for D/A and A/D conversion
Level shifters
2
R networks
dual network and R-2R network
Board version
532 x 297 x 120 mm
Weight board version
approx. 3.4 kg
Box version
580 x 450 x 155 mm
Total weight box version
approx. 6.6 kg
Recommended accessories
Accessory set Type 3220.1, IC BOARD Type 3530, experiment manual V 0047

Taken from the tables of contents of the hps experiment manuals (titles, numbers and pages). All manuals are German; titles are shown in the original language. All manuals and experiments

V 0047 Einführung in die Analogtechnik Manual · 229 pages 35 experiments

Main device of this manual – applies to all experiments View table of contents

  1. 1 Der einfache Differenzverstärker p. 1
  2. 2 Differenzverstärker mit Konstantstromquelle p. 7
  3. 3 Der Operationsverstärker A 741 p. 11
  4. 4 Inverter p. 21
  5. 5 Nichtinvertierender Verstärker p. 27
  6. 6 Impedanzwandler p. 33
  7. 7 Kompensation von Eingangsruhestrom und Offsetspannung p. 37
  8. 8 Additionsglied (Summierer) p. 41
  9. 9 Subtraktionsglied p. 45
  10. 10 Differenzspannungsverstärker p. 49
  11. 11 Konstantstromquellen und Spannungsstromwandler p. 53
  12. 12 Komparator (Schwellwertschalter) p. 57
  13. 13 Komparator mit Hysterese (Schmitt-Trigger) p. 61
  14. 14 Präzisionsspannungsquelle p. 67
  15. 15 Präzisionsgleichrichter ohne Schleusenspannung p. 73
  16. 16 Astabiler Mulitivibrator p. 79
  17. 17 Integrator p. 83
  18. 18 Dreieck- und Sägezahngenerator p. 89
  19. 19 Differenzierer p. 95
  20. 20 Monostabiler Multivibrator p. 99
  21. 21 RC-Oszillator mit Operationsverstärker p. 103
  22. 22 Wechselspannungsverstärker p. 107
  23. 23 Funktionsgeber p. 111
  24. 24 Quadrierer mit Diodennetzwerk p. 117
  25. 25 Radizierer mit Diodennetzwerk p. 121
  26. 26 Impulslängendiskriminator p. 125
  27. 27 Glättung mit Verzögerungsgliedern 1. und 2. Ordnung p. 129
  28. 28 Spannungs-Frequenz-Umsetzer (Analog-Frequenz-Umsetzer) p. 133
  29. 29 Analog-Digital-Umsetzer (ADU) p. 139
  30. 30 Digital-Analog-Umsetzer (DAU) p. 143
  31. 31 R-2R-Netzwerk als Digital-Analog-Umsetzer p. 147
  32. 32 Hybridmultiplizierer p. 153
  33. 33 Elektrisches Wattmeter p. 157
  34. 34 Dividierer p. 161
  35. 35 Radizierer p. 165
