Type 1045.1

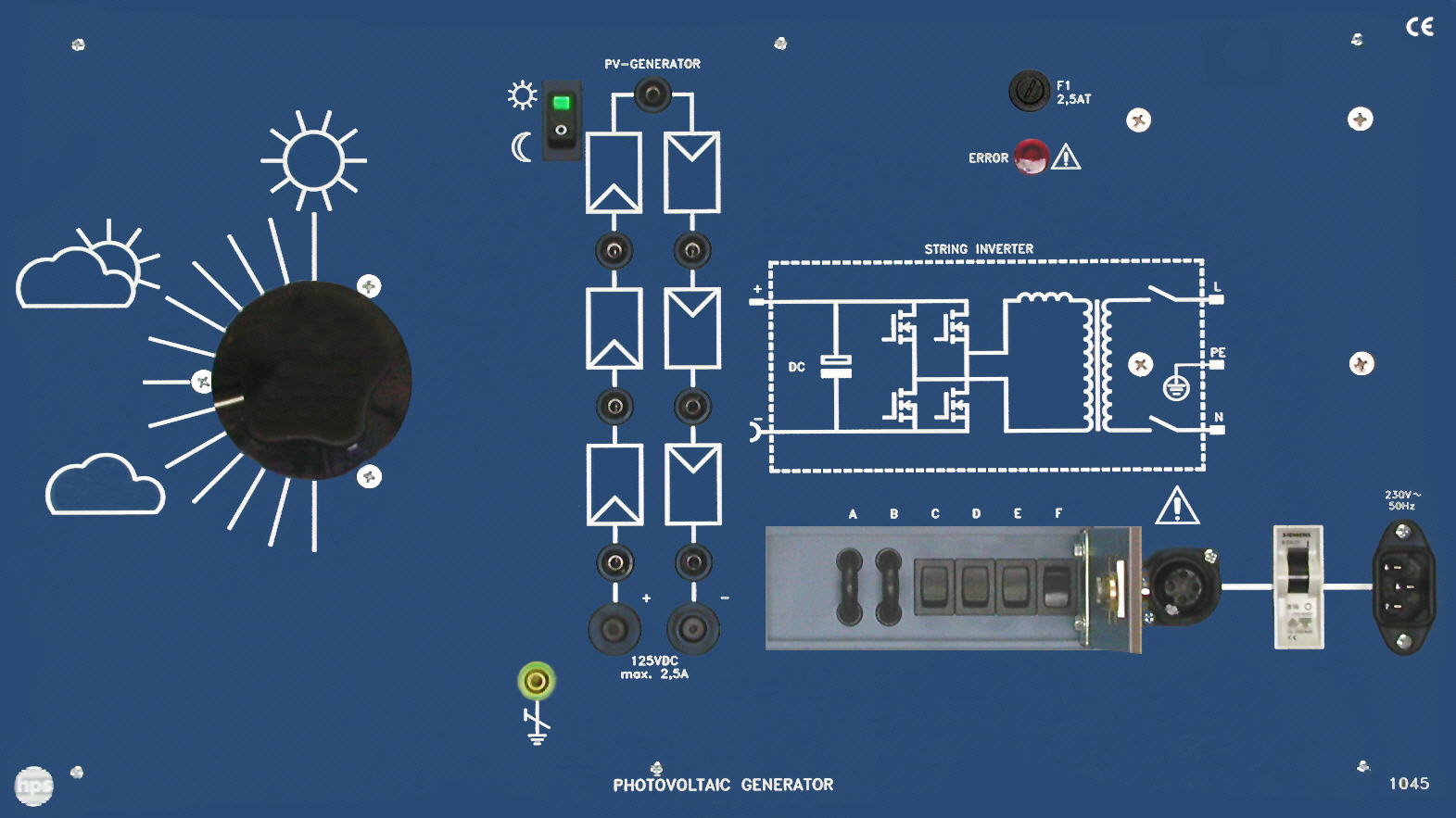

PHOTOVOLTAIC GENERATOR Type 1045.1
The PHOTOVOLTAIC GENERATOR Type 1045.1 is a complete training system for grid-connected PV installations. The board simulates both the PV generator and the inverter grid connection on one compact unit and enables measurements independent of weather and time of day.
- Complete training system for grid-connected PV installations
- Simulation of PV generator and inverter grid connection on one board
- Incident light energy adjustable continuously
- Measurements independent of weather and daylight conditions
- Realistic U/I behaviour of the PV modules
- Voltage measurement points at every single module
System concept and use
The training system was designed to examine grid-connected PV installations and combines generator, grid feed-in and inverter into one didactic system.
Incident light energy can be adjusted continuously, allowing typical PV measurements and operating-point studies regardless of weather and daylight conditions.
Fault simulation and inverter operation
At the PV generator, partial shading, failure of a bypass diode and insulation faults can be simulated. On the grid side, a variable grid impedance for ENS monitoring is integrated.
The Sunny Boy SWR 700 inverter is connected via RS 232 and can be examined at different operating points.
Sunny Data software
Sunny Data continuously records the operating data of the connected inverter, monitors operating states and reports faults.
Available channels include PV voltage, grid current, grid voltage, grid frequency, grid power, grid impedance, insulation resistance, total energy and error status of the Sunny Boy.
- Fault simulation at the PV generator and at the grid feed-in
- Sunny Data for convenient visualization and plant monitoring
- PV generator
- 6 PV modules, max. approx. 20 V / 2.5 A, with integrated bypass diodes
- Generator fault simulation
- Partial shading of the PV generator, failure of a bypass diode, insulation fault; lockable door
- Grid feed-in
- Protected by 6 A miniature circuit breaker
- Grid fault simulation
- Grid impedance with different values for ENS monitoring; also lockable
- Inverter
- Sunny Boy SWR 700
- DC input voltage range
- 75 V ... 150 V
- Input current Ipv max
- 6.2 A
- Rated AC output power
- 700 W
- AC voltage operating range
- 196 V ... 253 V
- Frequency operating range
- 49.8 Hz ... 50.2 Hz
- Interface
- RS 232
- Generator dimensions
- 532 x 297 x 200 mm (W x H x D)
- Generator weight
- 13.7 kg
- Inverter dimensions
- 322 x 290 x 180 mm (W x H x D)
- Inverter weight
- 16 kg
- Simulation of a PV generator with adjustable incident light energy
- U/I behaviour of PV modules under realistic conditions
- Investigation of different operating points of a Sunny Boy SWR 700
- Fault simulation at the PV generator
- Fault simulation in the grid feed-in and ENS monitoring
- Plant monitoring and data evaluation with Sunny Data
