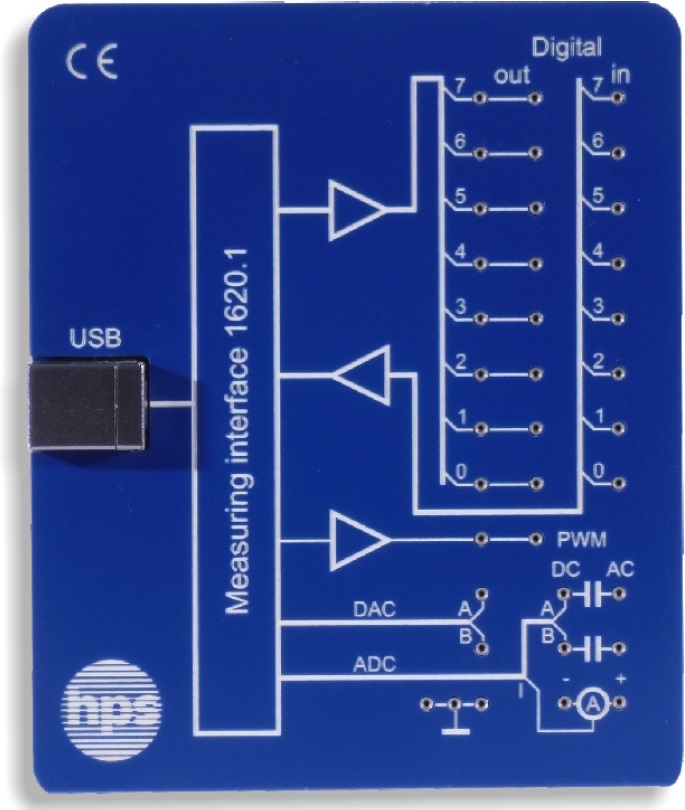

USB Measuring Interface Type 1620.1

Type 1620.1

USB Measuring Interface Type 1620.1

The USB Measuring Interface Type 1620.1 is the measurement add-on for LABLine and other hps products. It combines digital and analogue inputs and outputs with generator, measurement and visualization functions on one compact USB board.

  • Measurement add-on for LABLine and other hps products
  • USB 1.1 or higher PC interface
  • 8 digital outputs and 8 digital inputs in TTL level
  • PWM output 0 ... 100 kHz with adjustable pulse width
  • Two DAC outputs with 0 ... +/-5 V and adjustable DC offset
  • Two ADC inputs for DC or AC voltages up to +/-10 V
Datasheet (PDF) Send Inquiry

Hardware for measurement and generation

The USB Measuring Interface extends LABLine and other hps systems with digital and analogue measurement and generator functions. The hardware combines digital I/O, PWM, DAC and ADC channels as well as a current measuring range in one compact USB device.

Outputs operate at 5 V TTL level. Analogue voltages and signal shapes can be generated, adjusted and measured via software.

Software modules 1620.1 EVGB

The 1620.1 EVGB software runs on Windows and provides several dedicated tools, including DIG WAVE as a digital bus generator, LOGIC TESTER, DIG OSC as a digital oscilloscope and the Dual Phase Waveform Generator.

The waveform generator can create sine, triangle, sawtooth, square and DC signals as well as free signal shapes with adjustable frequency, amplitude, offset and phase.

  • Current measurement for DC/AC currents up to +/-30 mA
  • Software package with bus generator, logic tester, digital oscilloscope and dual-phase waveform generator
PC interface
USB 1.1 or higher
Digital outputs
8 outputs OUT D0 - D7, TTL level 5 V, max. output current 15 mA
Digital inputs
8 inputs IN D0 - D7, TTL level 5 V, max. input voltage +5.5 V
PWM
Square-wave output 0 ... 100 kHz, pulse width 0 ... 100 %, output voltage 5 V +/-10 %, max. output current 30 mA
DAC A / B
2 outputs, 0 ... +/-5 V, DC offset -5 V to +5 V, software-defined signal forms, max. output current 30 mA
ADC A / B
2 inputs for DC or AC, input voltage 0 ... +/-10 V, separate DC and AC input per channel
Ammeter
Measurement of DC/AC currents, max. input voltage +/-10 V, current range +/-30 mA
Dimensions
90 x 110 x 15 mm (W x H x D)
Weight
approx. 150 g
Material
Laminated insulating material, marine blue, white laser symbols
Software
1620.1 EVGB for Windows XP / Vista / Win7 32/64 bit
