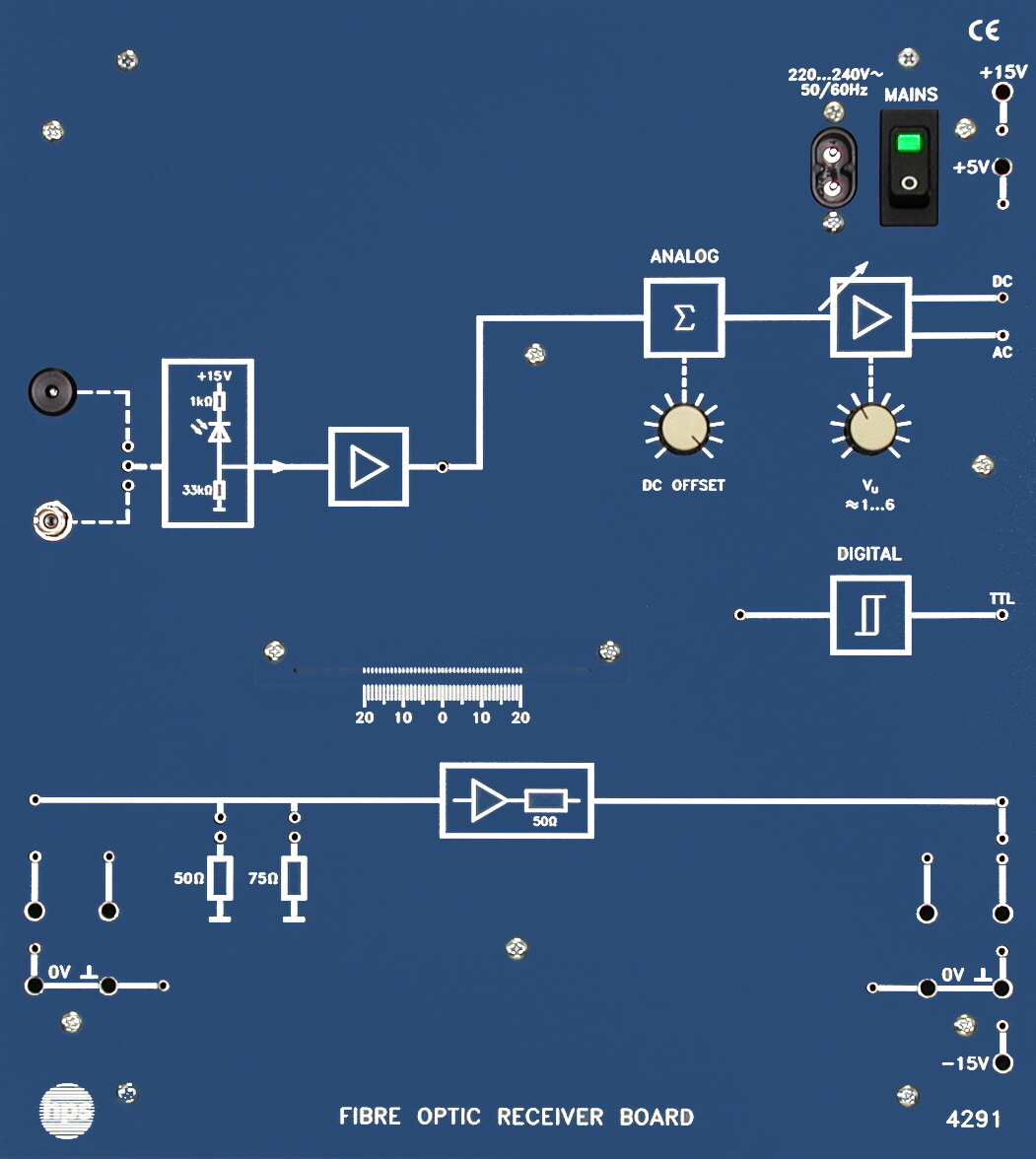

FIBRE OPTIC RECEIVER BOARD Type 4291

Type 4291

FIBRE OPTIC RECEIVER BOARD Type 4291

Type 4291 is the receiver side of the fibre optic training system. Optical and electrical input signals can be evaluated with adjustable amplifiers, DC offsets and TTL outputs. This makes the transmission behaviour easy to analyse directly.

  • Receiver board for fibre optic technology
  • Optical input for plastic and glass fibre
  • Electrical input for comparison lines
  • Amplifier with adjustable gain
  • DC and AC outputs plus TTL output
  • Schmitt trigger for digital signals
Datasheet (PDF) Experiment manual Fibre Optic Technology (PDF) Send Inquiry

Receiver side and analysis

The board represents the receiving side for optical and electrical transmission paths. Different output types and adjustable levels make it easy to analyse attenuation, switching thresholds and signal shapes.

The adjustable fibre spacing can be used to simulate attenuation on plastic fibres in a controlled way.

Experiment setup

The receiver board is intended for use together with the transmitter board Type 4290, the optical bench and the laser module. This allows complete optical, infrared and wired transmission paths to be built.

The system is also suitable for measurements with standard generators and measuring instruments.

  • Adjustable coupling for attenuation simulation
Optical input
plastic fibre / glass fibre
Electrical input
two-wire or coaxial line
Input resistance
50 Ohm / 75 Ohm
Output amplifier
gain 1 ... 6; DC component +0.5 V ... -5.5 V
Outputs
DC 0 ... +/-8 V; AC 0 ... 16 V; TTL with Schmitt trigger, fan-out 10
Plastic fibre coupling
end-face distance adjustable for attenuation simulation
Dimensions
266 x 297 x 110 mm
Weight
2.0 kg
Supply
+15 V / -15 V / +5 V
