Type 4284

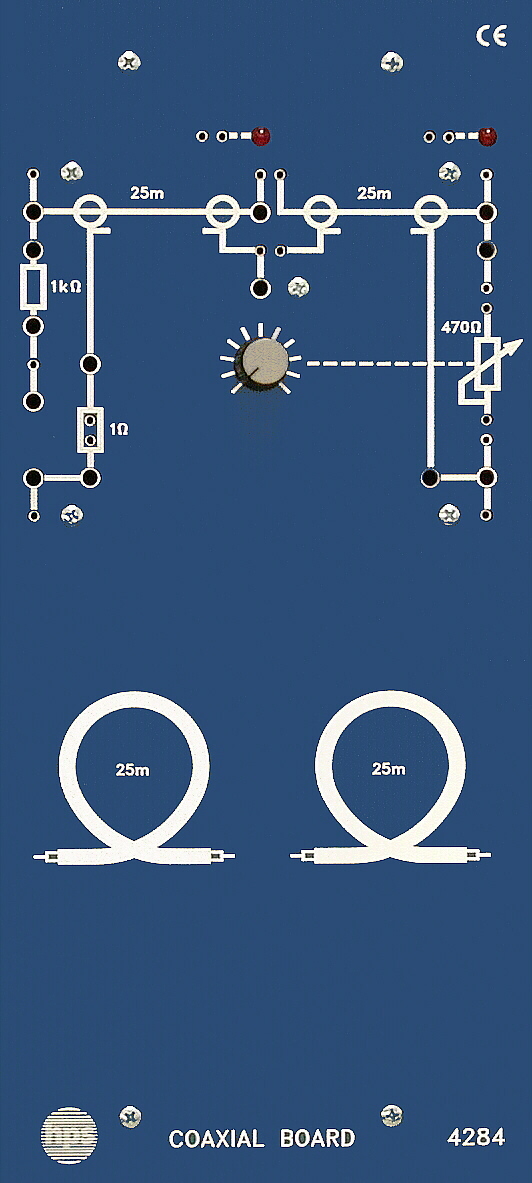

COAXIAL BOARD Type 4284
Type 4284 is a training board for experiments with shielded lines. The 50 m line, adjustable termination and display elements make standing waves, attenuation and reflections immediately visible.
- Training board for shielded lines
- 50 m line split into two 25 m sections
- Adjustable terminating resistor
- Display elements for standing waves
- Multiple boards can be cascaded
- Suitable for RF and line experiments
Line experiments
The board makes it possible to study the characteristics of a shielded line and its frequency behaviour. Attenuation, input resistance, standing waves and the shortening factor can all be observed directly on the setup.
The built-in line section is also suitable for fault location and impulse behaviour experiments.
Lab operation
The module is intended for use with an oscilloscope and function generator. Its cascading design makes it possible to examine longer line sections and different termination conditions.
The built-in LEDs help to observe standing waves and reflected signals.
- Line
- 50 m total, split into 2 x 25 m
- Ohmic resistance
- 300 Ohm/km
- Inductance
- 0.4 uH/m
- Characteristic impedance
- 50 Ohm +/- 2 Ohm
- Capacitance
- 100 pF/m
- Terminating resistor
- 0 ... 470 Ohm, continuously adjustable
- Measurement shunt
- 1 Ohm for current measurement
- Dimensions
- 133 x 297 x 110 mm
- Weight
- 1.25 kg
- Recommended accessories
- Experiment manual V 0135, oscilloscope and function generator
- Introduce line characteristics
- Measure attenuation along the line
- Study line frequency dependence
- Measure input resistance at open circuit, short circuit and matched load
- Investigate standing waves
- Determine propagation velocity and shortening factor
- Locate faults with the RF method
- Study impulse behaviour of the line
- Perform impulse reflectometry
- Vary matching and reflections
Taken from the tables of contents of the hps experiment manuals (titles, numbers and pages). All manuals are German; titles are shown in the original language. All manuals and experiments
V 0135 Versuche zur abgeschirmten Leitung Manual · 70 pages 9 experiments
Main device of this manual – applies to all experiments View table of contents
- 2 Kennwerte einer abgeschirmten Leitung p. 3
- 3 Dämpfungsmessung entlang einer Leitung p. 7
- 4 Frequenzabhängigkeit einer Leitung p. 11
- 5 Eingangswiderstand einer Leitung bei Leerlauf, Kurzschluß und Anpassung p. 15
- 6 Stehende Wellen p. 19
- 7 Ausbreitungsgeschwindigkeit und Verkürzungsfaktor p. 27
- 8 Fehlerortung (Hochfrequenzmethode) p. 31
- 9 Impulsverhalten einer Leitung p. 37
- 10 Impulsreflektometrie p. 41
No experiment matches the filter.
V 0132 Übertragungsstrecken Manual · 96 pages 2 experiments
Additional device in this manual View table of contents
- 3.4 Abstrahlcharakteristik des Sendemoduls p. 58
- 3.6 Übertragung frequenzmodulierter Signale p. 64
No experiment matches the filter.
V 0134.1 Lichtwellenleitertechnik Manual · 125 pages 1 experiment
Mentioned in 1 experiment View table of contents
