TRANSMITTER BOARD Type 4282

Type 4282

TRANSMITTER BOARD Type 4282

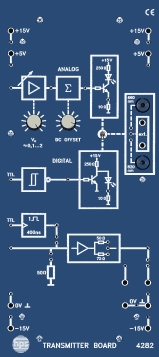

Type 4282 is the transmitter section of the transmission system for fibre optics, infrared and wired-line experiments. It provides analogue and digital signals as well as optical and electrical output paths. Together with the receiver board it forms complete transmission chains.

  • Transmitter board for fibre optics, infrared and lines
  • Analogue and digital input
  • Optical outputs for plastic and glass fibre
  • Electrical output with driver for comparison lines
  • Integrated sine, square and pulse generator
  • Socket field for laser module and noise simulation
Datasheet (PDF) Experiment manual Transmission Paths (PDF)

Transmitter side

The board represents the transmitter side of the system. Optical as well as electrical transmission paths can be built and driven by the integrated generators.

The optical outputs allow experiments with plastic and glass fibres as well as infrared transmission.

Lab applications

The module is designed for experiments with modulation and demodulation boards, standard generators and measuring equipment. The socket field for the laser module enables additional exercises with the laser diode.

Comparison measurements with two-wire and coaxial lines make the effect of the transmission path directly visible.

  • Suitable for two-wire and coaxial lines
Inputs
1 analogue; 1 digital; 2 mm sockets
Optical output
plastic fibre 660 nm / 850 nm; glass fibre 850 nm
Electrical output
driver for two-wire or coaxial line
Output resistance
50 Ohm / 75 Ohm
Sine generator
f = 1 kHz; Uss = 3 V
Square generator
f = 10 kHz (TTL)
Pulse generator
pulse width 400 ns
Noise simulation
transformer socket field with supply
Laser module
socket field for Type 4290.70
Dimensions
266 x 297 x 110 mm
Weight
1.9 kg
Supply
+15 V / -15 V / +5 V

Type numbers and variants of this device as named in the hps manuals. As of 2026-09-06

Type Description Experiments Manuals
4282.4 No description in the manual 4 V 0132
4282.18 No description in the manual 2 V 0132 V 0134.1
4282.20 No description in the manual 2 V 0132
4282.21 No description in the manual 1 V 0132
4282.23 No description in the manual 5 V 0132

Taken from the tables of contents of the hps experiment manuals (titles, numbers and pages). All manuals are German; titles are shown in the original language. All manuals and experiments

V 0132 Übertragungsstrecken Manual · 96 pages 19 experiments

Main device of this manual – applies to all experiments Named in the manual as 4282.20, 4282.21, 4282.23, 4282.18, 4282.4 View table of contents

  1. 2.2 Leistungskennlinien von Sendedioden mentioned p. 13
  2. 2.3 Dämpfungsmessung an Fasern mentioned p. 17
  3. 2.4 Dämpfung an Verbindungsstellen mentioned p. 22
  4. 2.5 Übertragung von Wechselspannung mentioned p. 28
  5. 2.6 Übertragung von zwei analogen Signalen im Frequenzmultiplex-Betrieb mentioned p. 32
  6. 2.7 Übertragung frequenzmodulierter Signale p. 37
  7. 2.8 Übertragung pulsfrequenzmodulierter Signale mentioned p. 43
  8. 2.9 Übertragung eines PCM-Signals mentioned p. 43
  9. 3.2 Spektrale Empfindlichkeit des Infrarotempfängers mentioned p. 54
  10. 3.3 Dämpfung der Übertragungsstrecke (fotometrisches Entfernungsgesetz) mentioned p. 56
  11. 3.4 Abstrahlcharakteristik des Sendemoduls mentioned p. 58
  12. 3.5 Übertragung von Wechselspannung mentioned p. 62
  13. 3.6 Übertragung frequenzmodulierter Signale mentioned p. 64
  14. 3.7 Übertragung eines digitalen Signals in modulierter Betriebsart p. 66
  15. 3.8 Übertragung eines PCM-Signals p. 68
  16. 4.2 Anpassung p. 72
  17. 4.3 Störempfindlichkeit einer Zweidrahtleitung p. 73
  18. 4.4 Störempfindlichkeit einer Koaxialleitung p. 79
  19. 4.5 Störstrahlung einer drahtgebundenen Übertragung p. 81
Other sections mentioning this product (1)
  1. 3 Drahtlose Übertragung durch Infrarotstrahlen p. 51
V 0134.1 Lichtwellenleitertechnik Manual · 125 pages 1 experiment

Mentioned in 1 experiment Named in the manual as 4282.18 View table of contents

  1. 3.6.2 Fehlersimulation mit der Optischen Bank p. 36
V 0135 Versuche zur abgeschirmten Leitung Manual · 70 pages 2 experiments

Additional device in this manual View table of contents

  1. 9 Impulsverhalten einer Leitung p. 37
  2. 10 Impulsreflektometrie p. 41
