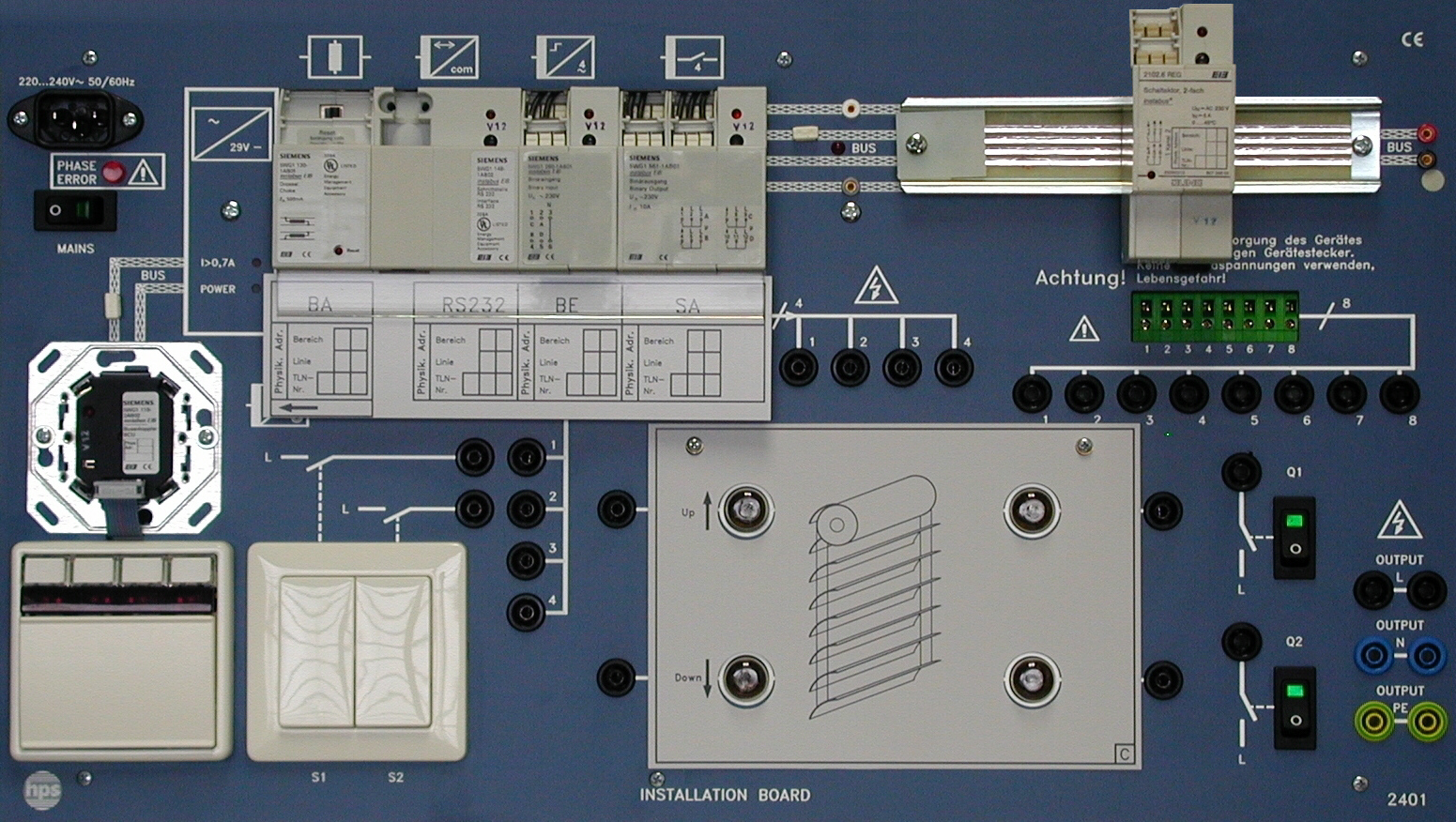

INSTALLATION BOARD Type 2401.1
The INSTALLATION BOARD Type 2401.1 is a compact training unit for KNX building services technology. It includes all important basic components, can be expanded with additional KNX devices, and can be used as a desktop unit, in a demonstration rack, or in a box.
- Compact training unit for KNX building services technology
- All essential basic components included, single-phase mains outlet sufficient
- Additional KNX devices from different manufacturers can be mounted on the integrated top-hat rail
- Integrated bus detector for displaying bus activity
- Integration of conventional installation technology possible
- Programming through the integrated USB interface
System Setup
The INSTALLATION BOARD is a training unit for experiments on KNX building services technology.
All important basic components required for KNX training are built in. For expansion, a top-hat rail is mounted on the front so that additional KNX devices from various manufacturers can be fitted.
Templates with printed floor plans can be placed on the front of the INSTALLATION BOARD to define tasks.
- 29 V / 500 mA power supply for KNX components via the bus
- Choke
- USB data interface
- 4-fold binary input
- 4-fold switching actuator
- Flush-mounted bus coupler
- Pushbutton sensor with 4 pairs of buttons and programmable LED indicators
Accessories and Use
Inputs and outputs are wired via 4 mm safety sockets. Bus connection and 29 V supply for external devices are provided via 2 mm sockets.
The INSTALLATION BOARD can be used on a desk, in a demonstration rack or in a box. The box ensures transport and storage; experiments can also be performed directly on the opened case.
- 4 mm safety leads
- USB connecting cable, 3 m (Type 9102.54)
- ETS5 software via KNX account
- Experiment manual Type V 0118-V4 "KNX building services technology"
- Expansion options: EXTENSION BOARD Type 2402 and demonstration plates for the European Installation Bus
- Usable as desktop unit, in a demonstration rack, or as a mobile training unit in a box
- No ETS5 software included; it must be ordered directly from KNX
- Mains voltage
- 230 V AC; 50 ... 60 Hz; 50 VA
- Power supply
- 29 V DC; 500 mA, short-circuit protected, with operating and overload indication by LEDs
- Board dimensions
- 532 x 297 x 120 mm (W x H x D)
- Board weight
- 3.75 kg
- Box dimensions
- 580 x 450 x 155 mm (W x H x D)
- Box weight
- 6.55 kg
- Front plate
- 5 mm laminated material, matte blue, with abrasion-resistant engraved symbols and bus routing
- Rear side
- Stable plastic cover that allows an ergonomic inclination on the desk
- Included accessories
- Templates with printed floor plans and a terminal strip with labelling strips
- 1 Technology of the European Installation Bus (EIB)1
- 1.1 Areas of application of the EIB / KNX1
- 1.2 Topology2
- 1.3 Power supply and line lengths4
- 1.4 Communication within the EIB system4
- 1.4.1 Transmission technique4
- 1.4.2 Bus users4
- 1.4.3 Bus access methods5
- 1.4.4 Telegram structure6
- 1.4.5 Transmission time9
- 1.4.6 Byte structure within a telegram9
- 1.5 EIB components used in the manual10
- 1.5.1 Pushbutton sensors10
- 1.5.2 Bus couplers10
- 1.5.3 Chokes10
- 1.5.4 Data interface10
- 1.5.5 Binary inputs11
- 1.5.6 Binary outputs11
- 1.5.7 Twilight detectors11
- 2 The EIB Tool Software ETS213
- 2.1 System requirements13
- 2.2 Software installation13
- 2.2.1 Installation under Windows 3.1x14
- 2.2.2 Installation under Windows 95 and 9814
- 2.3 Working with ETS214
- 2.3.1 Starting and ending ETS214
- 2.3.2 ETS2 main menu14
- 2.3.3 ETS2 assistant15
- 2.3.4 Popup menus16
- 3 Safety instructions for handling the system17
- 4 Experiments with switching off19
- Experiment 1: Switching off with switch19
- Experiment 2: Switching off with switch and pushbutton28
- Experiment 3: Switching off with 4-fold pushbutton sensor29
- Experiment 4: Switching off with central off, pushbutton and 4-fold pushbutton sensor30
- 5 Experiments with two-way circuit33
- Experiment 1: Two-way circuit with two switches33
- Experiment 2: Two-way circuit with two switches and double pushbutton35
- Experiment 3: Two-way circuit with 4-fold pushbutton sensor and double pushbutton36
- 6 Experiments with intermediate and surge current circuits37
- Experiment 1: Intermediate circuit37
- Experiment 2: Surge current circuit39
- 7 Experiments with brightness control41
- Experiment: Simulation of a twilight detector41
- 8 Test and error diagnosis of EIB/KNX projects43
- 8.1 Checking physical addresses43
- 8.2 Inquiry of device information44
- 8.3 Reading the bus device memory45
- 8.4 Diagnosis of group addresses45
- 8.5 Recording EIB/KNX telegrams46
- Solutions
- Experiments with switching offS 1
- Experiments with two-way circuitS 13
- Experiments with intermediate and surge current circuitsS 23
- Experiments with brightness controlS 29
- AppendixA 1
- AbbreviationsA 1
- Planning helpA 2
